Networking
QSFP-100G-FR-S

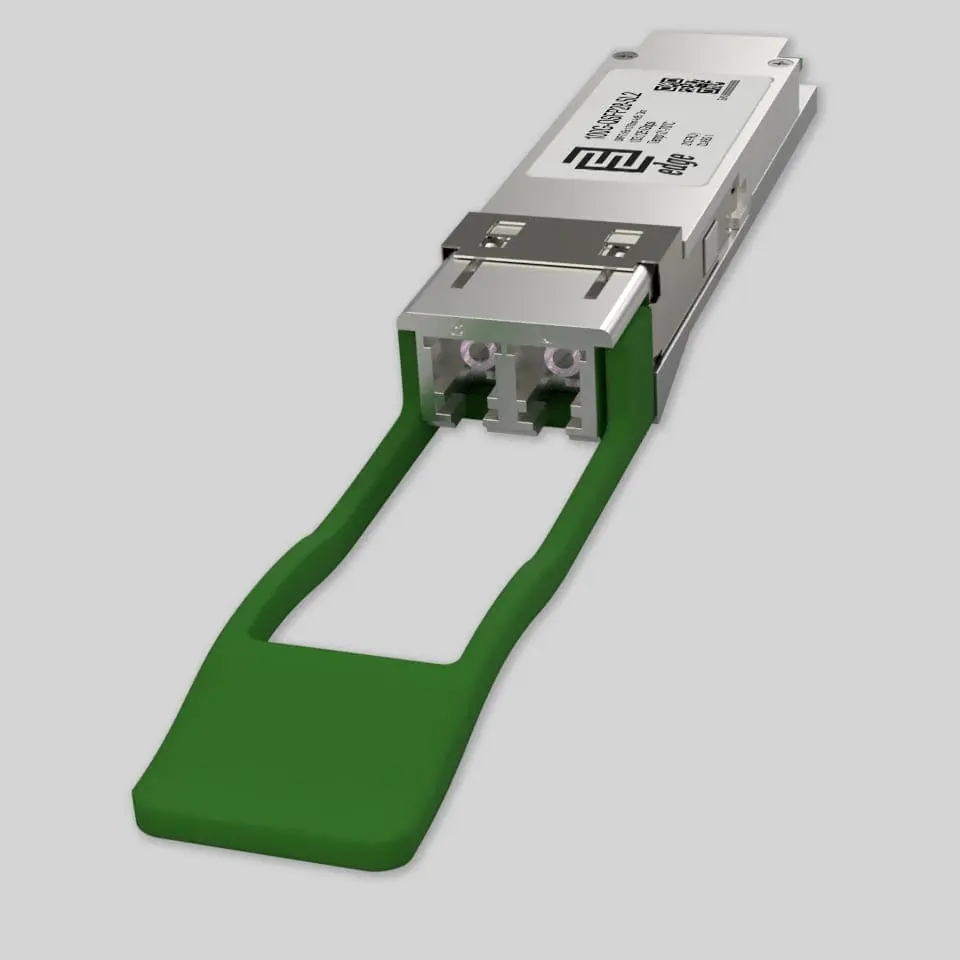

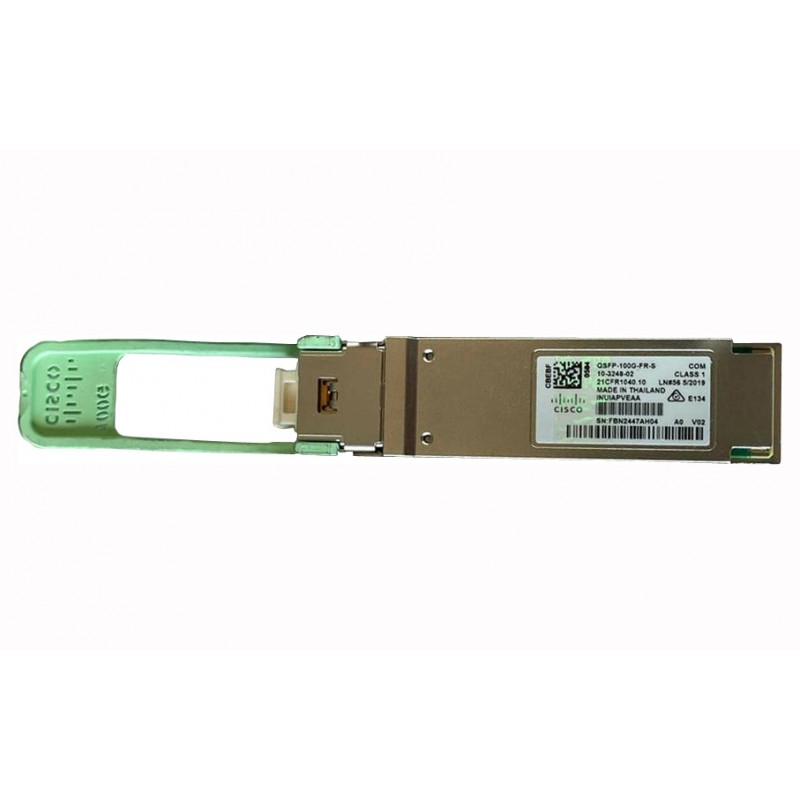

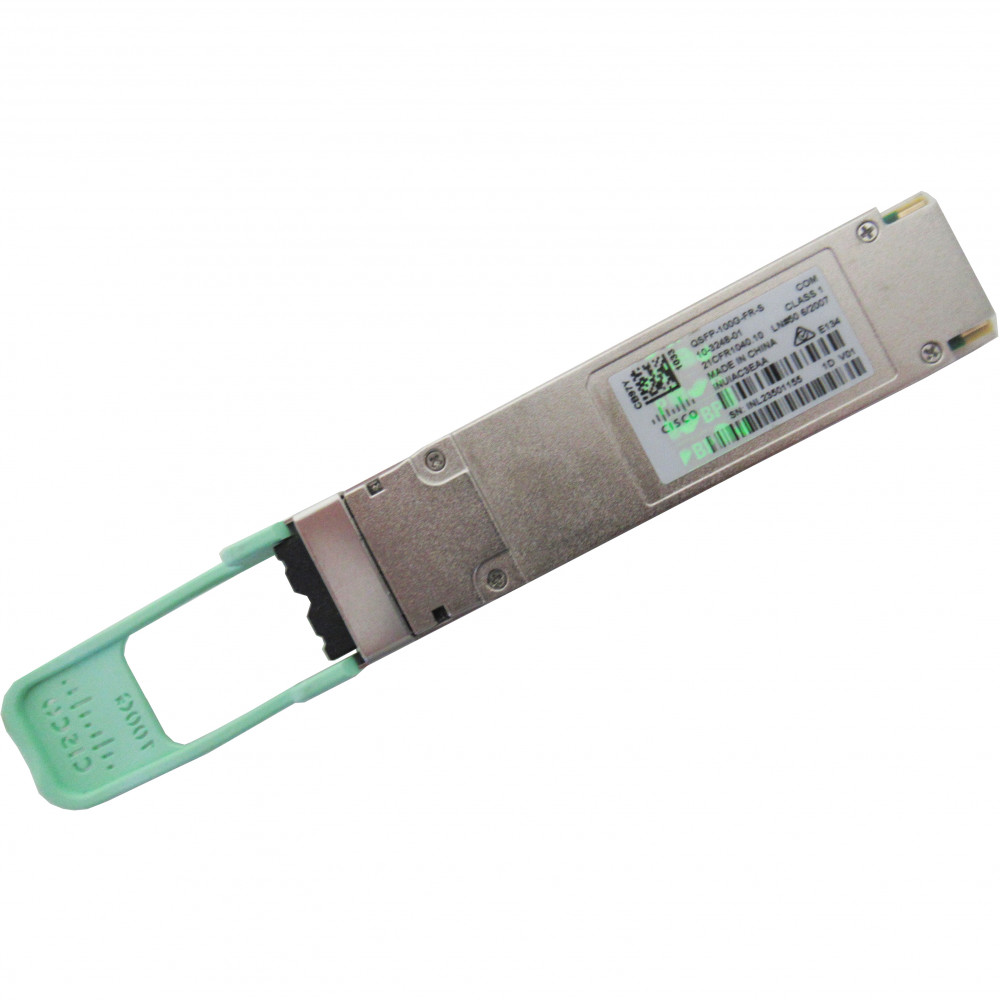

Cisco QSFP-100G-FR-S 100G Optical Modules
Cisco QSFP-100G-FR-S Compatible
Detailed Description :
Transceiver Module 1310nm LC Pluggable, QSFP28
د.إ200,00
د.إ170,00
Product Overview
| Type | Description |
|---|---|
| Category | Optoelectronics Fiber Optic Transceiver Modules |

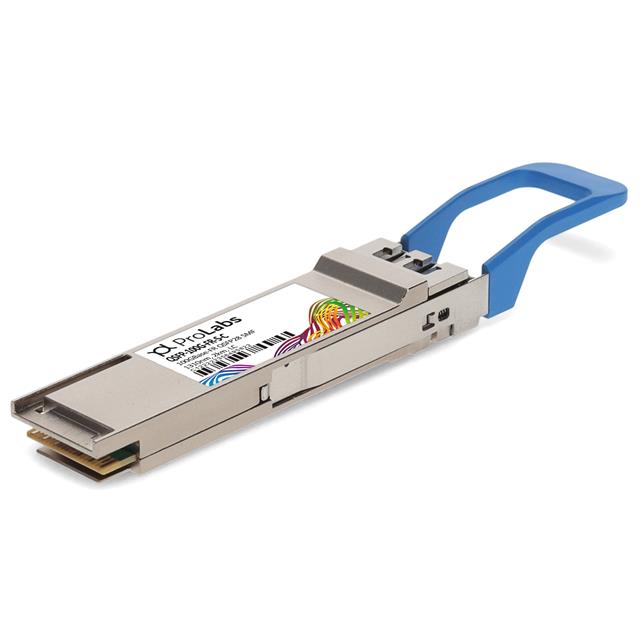

| Manufacturer | Amphenol ProLabs |
| Series | – |
| Packaging | Retail Package |
| Part Status | Active |
| Wavelength | 1310nm |
| Connector Type | LC |
| Mounting Type | Pluggable, QSFP28 |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | QSFP-100G-FR-S-C |
Additional Resources
| Attribute | Description | Other Names | 4932-QSFP-100G-FR-S-C |
|---|---|
| Standard Package | 1 |
Environmental & Export Classifications
| Attribute | Description | RoHS Status | RoHS Compliant |
|---|---|
| ECCN | 5A991 |
| HTSUS | 8517.62.0090 |
Free Delivery
From All Orders Over $100
24/7 Support
Get Online Support 24/7
30 Days Refund
Return Within 30 Days
Request a Quote
FAQ
What is the Cisco QSFP-100G-FR-S Module?
The Cisco QSFP-100G-FR-S Module supports link lengths of up to 2 km over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC.
What is the 100G FR (QSFP-100GFR-S)?
The first product in Cisco’s line of single-lambda 100G optics is the 100G FR (Product ID: QSFP-100GFR-S). With 100G FR, you can transition your network to next-generation smaller 100G form factors without sacrificing early investment and upgrade to 400G host platforms one site at a time.
What is QSFP-100G-SR4-S?
The Cisco 100GBASE-SR4-S QSFP Module is a 100G optical module that supports link lengths of up to 70m over OM3 and 100m over OM4 Multimode Fiber with MPO connectors. It primarily enables high-bandwidth 100G optical links over 12-fiber parallel fiber terminated with MPO multifiber connectors, and supports 100GBase Ethernet rate.
How does QSFP-100G-DR-S work?
QSFP-100G-DR-S operates by carrying the 100 Gigabit Ethernet signal over a single wavelength using onboard PAM4 modulation and FEC. It interoperates with 400G transceivers that comply with IEEE 400GBASE-DR4, such as Cisco’s QSFP-400G-DR4-S, via fiber break-out cables.
